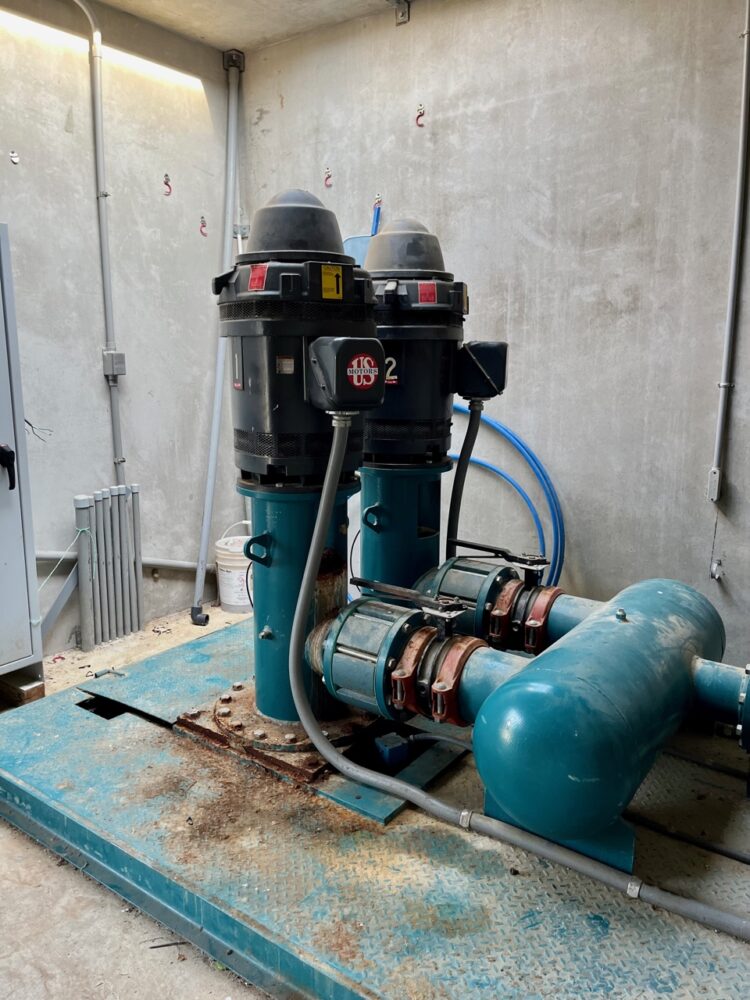

Two 60 HP irrigation vertical turbine booster pump station –
Pumps were recently removed and have not been used for some time. Both pumps spin by hand.
60 HP each
1000 GPM, 181 TDH (about 79 psi boost)
$85,000
Located in PA

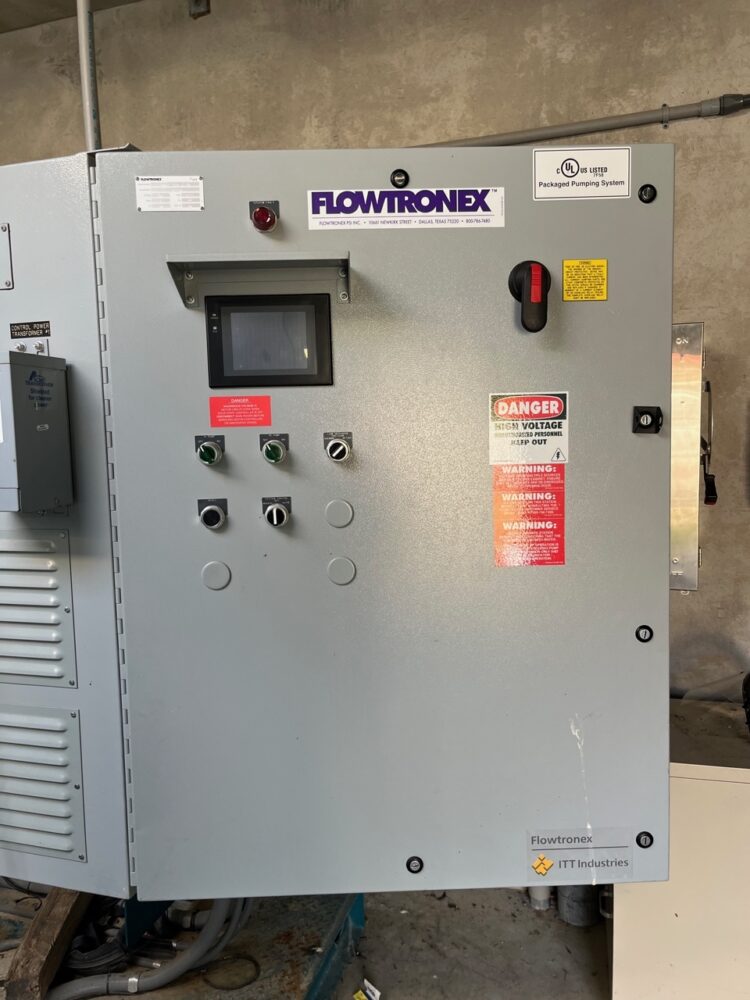

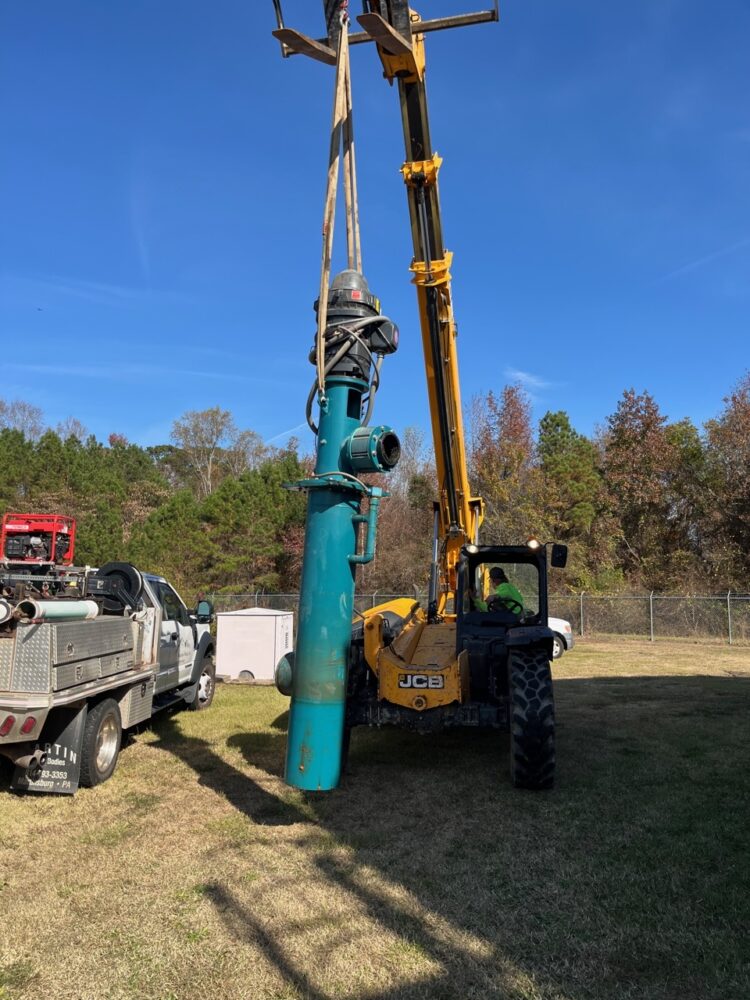

The package system new is approximately $130,000. I have a complete design spec booklet with all the pump information. The system was designed to run 1 pump at a time, with the other set up for redundancy.. This is not a VFD unit but a fixed speed pump system. It is a wet can system but the can’s can be removed to operate in a standard wet well. The turbines are approximately 6’ long. The US Motors are high quality. The pump and motor system have not been used since installation and could still be turned with one hand prior to removal. The Flowtronex tech said with a little work in the control box the pumps could be made to operate together at 500 gpm at approx. 120psi which could be used as an irrigation pump system. It was originally designed as an irrigation spray pump system or a high volume transfer pump. Flowtronex has a nationwide network of Flownet Centers to aid in modifying the pump or for assistance with an installation?
More photos available.
December 2024
